Automatic Elmendorf Tearing Strength Tester

- yante
- china
- 14
- 50

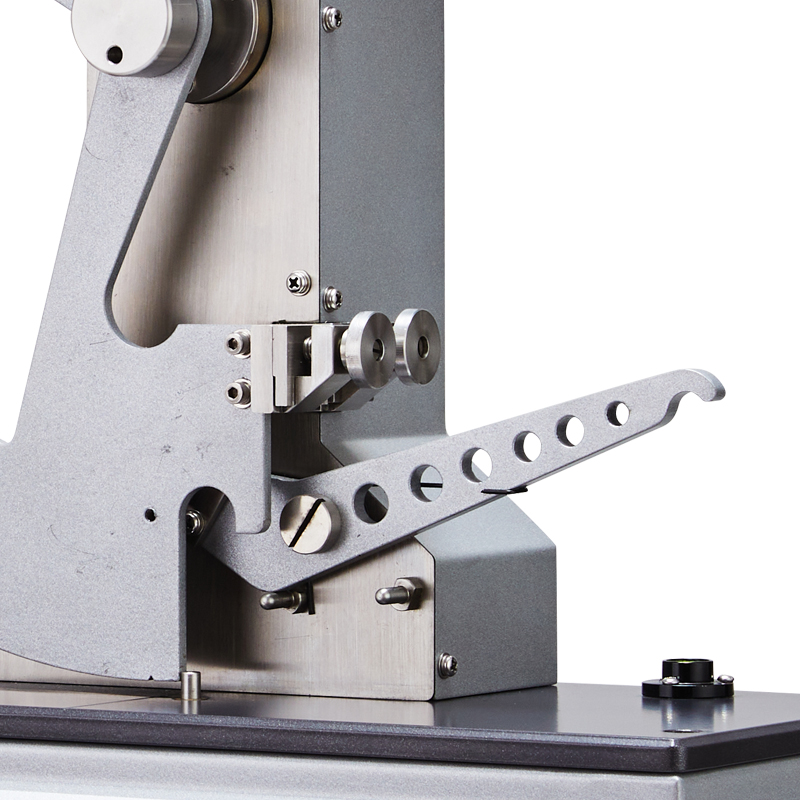

Electronic Tearing Tester is an intelligent testing instrument used to measure the tearing performance of sheets such as paper and cardboard.
Product Introduction
Electronic Tearing Tester is an intelligent testing instrument used to measure the tearing performance of sheets such as paper and cardboard. It is widely used in the field of testing paper materials by universities, research institutes, quality inspection departments, and paper printing and packaging production departments.
Prouduct Feature
l Automatically release the pendulum, high test efficiency
l Electronic Tearing Tester have Chinese and English operation, intuitive and convenient to use
l Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
l Communication with computer software (purchase separately)
Application Range
Electronic Tearing Tester is suit for Paper, cardboard, cardboard, carton, color box, shoe box, paper tray, film, cloth, leather, etc.
Supporting Accessories And Consumer
No. | Accessory name | Model | Picture | Standard | Optional |
1 | Adjustable Paper Cutter | YT-TJD300 | ![]() | √ |
Executive Standard
GB/T 455,QB/T 1050,ISO 1974,JIS P8116,TAPPI T414
Technical Parameters
No. | Parameter item | Technical index |
1 | Power Supply | AC(100~240)V, 50Hz/60Hz 50W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85% |
3 | Display | 7 inch color touch screen |
4 | Measuring range | A:(50~8000mN),B(8000~16000mN) |
5 | Minimum index | 0.1mN |
6 | Indication error | ±1% |
7 | Indication variability | ≤1% |
8 | Tear arm | (104±1)mm |
9 | Torn initial angle clamp | 27.5°±0.5° |
10 | Distance between paper clamps | (2.8±0.3)mm |
11 | Sample incision length | (20±0.5)mm |
12 | Built-in thermal printer | |
13 | Communication Interface | RS232(Default) (USB, WIFI optional) |
14 | Dimension | 415×305×615 mm |
15 | Net Weight | 20kg around |
